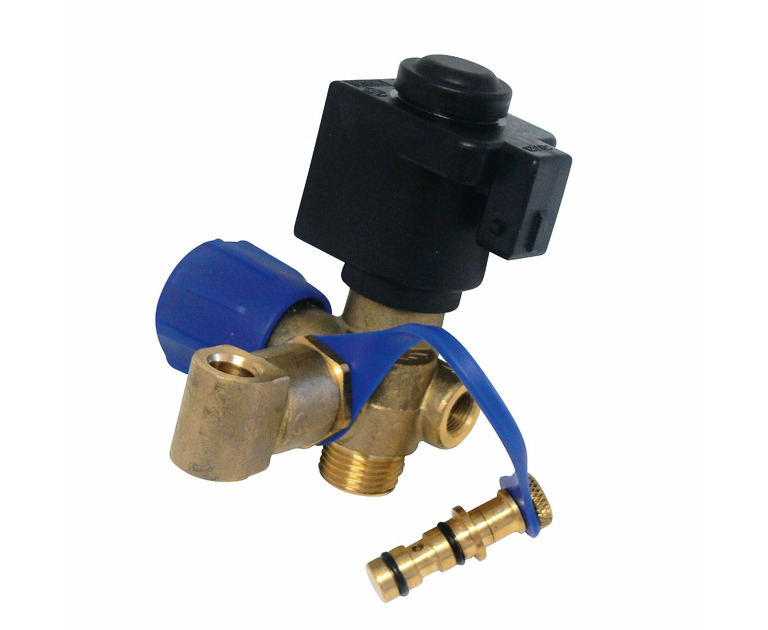

CNG filling valves VM05 PICO

CNG filling valves VM05 PICO


CNG automatic filling valves with PICO

Description

Tomasetto CNG automatic filling valves VM05 are homologated in accordance with the European Regulation ECE R110, R10, approved in accordance with the ENARGAS NAG 415 and NAG 417 and they also comply with the ISO15500 standards

CNG Automatic Filling valves with PICO are provided with solenoid valve, manual tap, discharge tap and are available with different types of connectors:

  • PICO New Zealand
  • PICO Brazil
  • PICO Argentina
  • Features & Options
TECHNICAL DATA

CNG FILLING VALVE VM05 WITH PICO
Material Hot forged brass CNC machined
Weight 1,00 kg
Type of product CNG automatic filling valve
Max. working pressure 26.0 MPa
Working temperature -40°C / 120°C
Manual tap, min. area of gas flow 12.6 mm²
Manual tap, Tightening torque at 26 MPa 3 ± 0.5 Nm
Manual tap,Opening/closing angle 900° (±45°)
Non return valve yes
Outlet pipe connection M12x1
External pipe connection 1/2 G
Types of PICO New Zealand, Brasile, Argentina
Solenoid valve, mi. area of gas flow 21,6 mm²
Coil voltage 12 V DC*
Coil power 15 W
Solenoid valve opening ΔP 26 Mpa @ 8V
Coil connection AMP minitimer
* upon request 24 V DC
