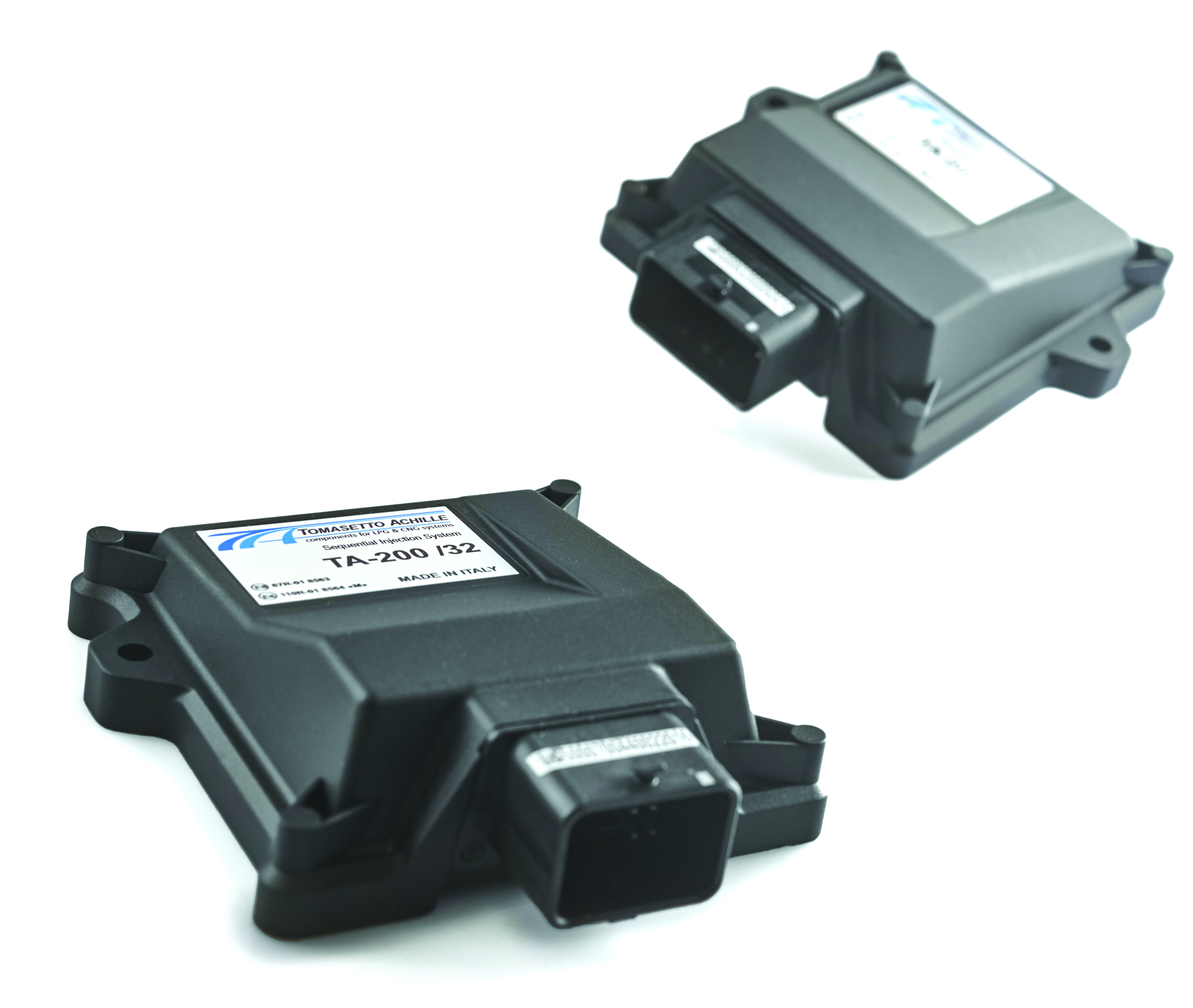

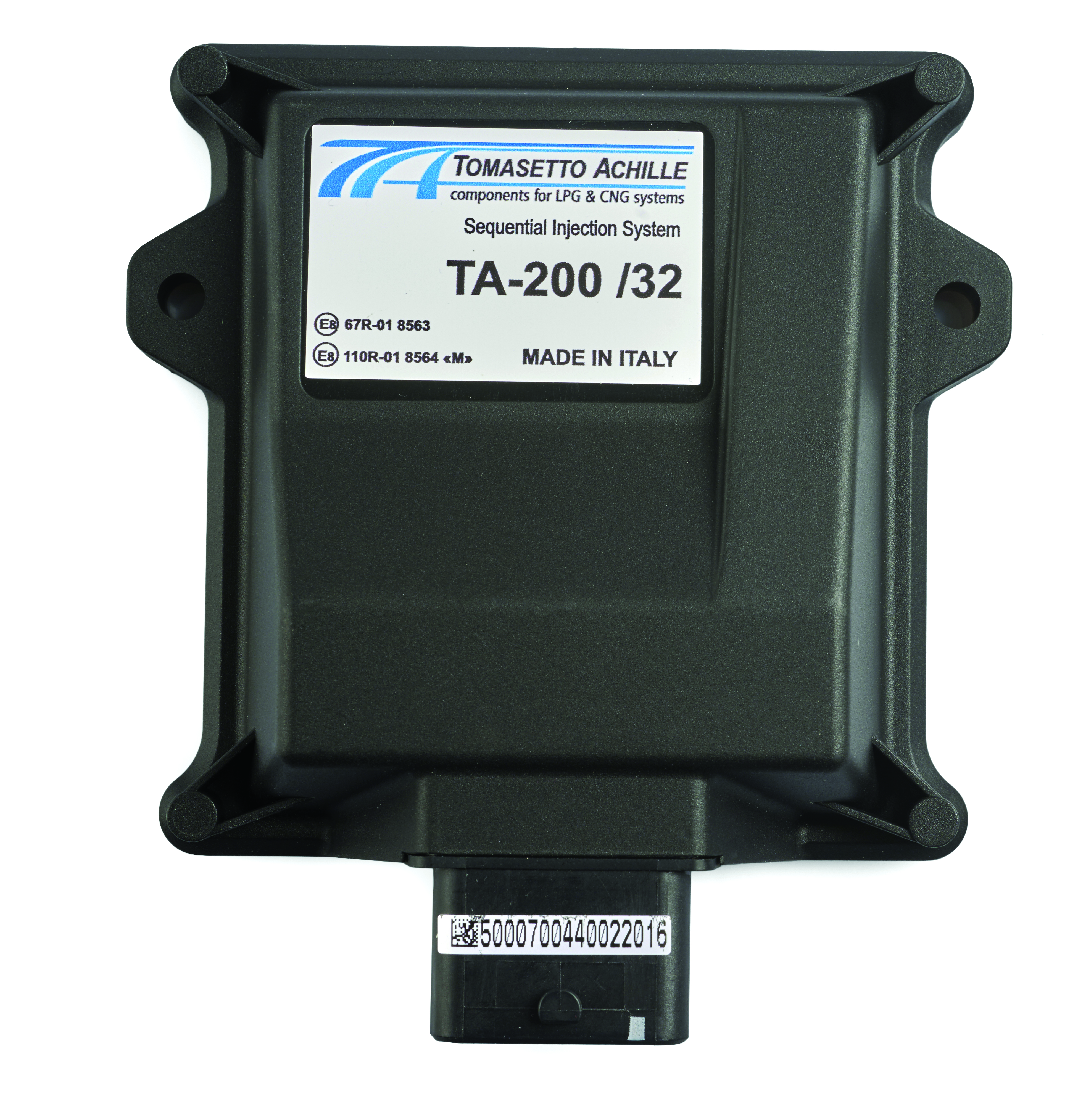

Model TA-200/32

Model TA-200/32

32 PIN ECU FOR INDIRECT INJECTION SYSTEMS

Description
  • Electronic control units model TA-200 are designed and manufactured in Italy
  • Equipped with user-friendly software interface
  • Features & Options
TECHNICAL DATA
VERSION TA-200/32
Supply Voltage 10 - 16 Volts CC
Working temperature -20 / + 105 ┬░C
Power consumption -
Stand-by (key Off) < 20 mA
No load ready to change (key On) < 160 mA
Gas Injectors supported 2, 3, 4
Injectors Impedance From 2 to 16 ohms
Lock-off load on single input 2 (Imax = 4A cad.)
Inputs for lock-off / Services 2
Water temper. sensors supported 4,7 - 10 kohm
Gas temper. sensors supported 4,7 - 10 kohm

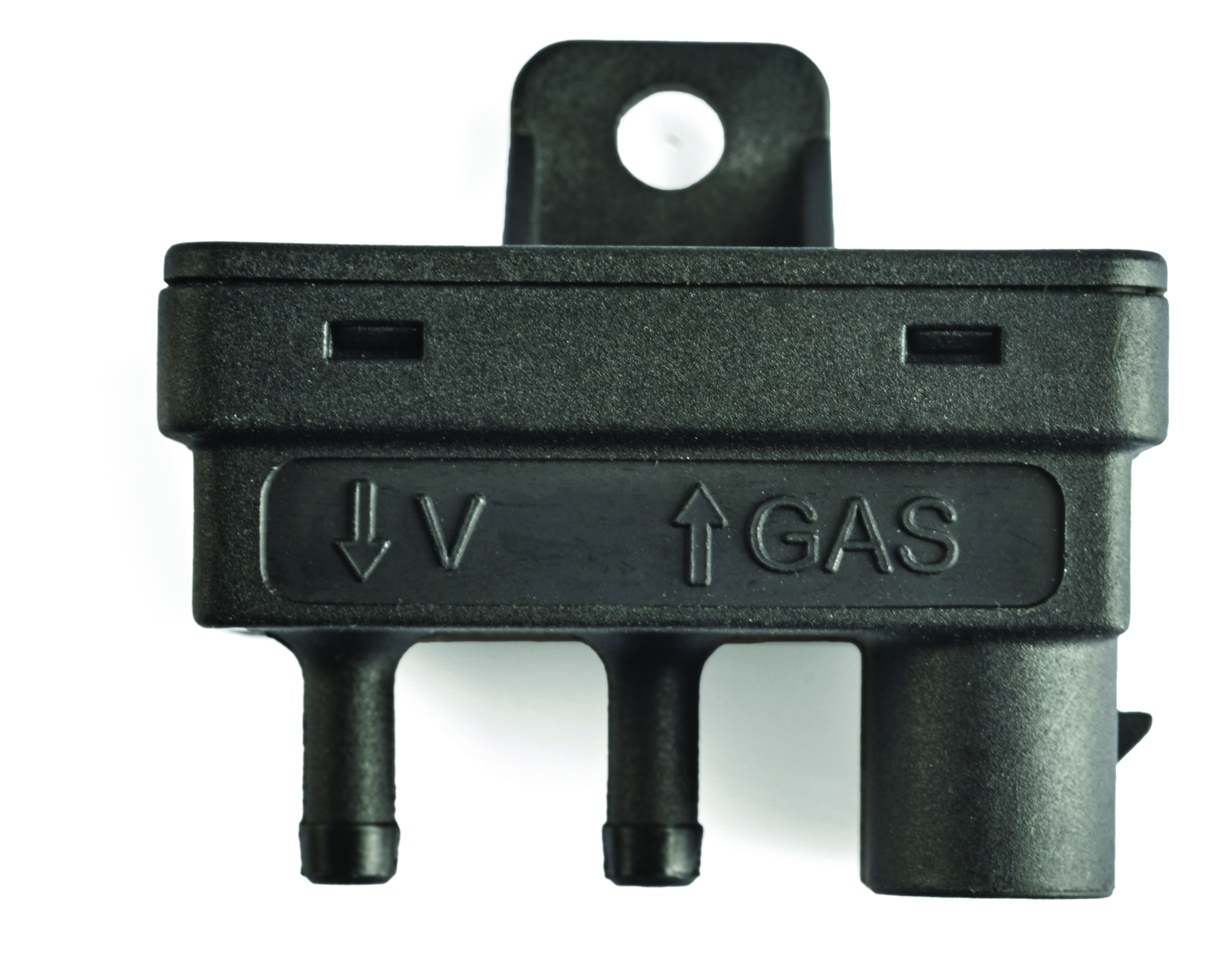

Pressure sensors supported 4+2,5 bar Absolute
Level sensors supported 1050 & 806 compatibles, 0-90 ohm (others on demand)
Lambda sensors managed 0-0,8 / 0-5 / 5-0 / 0,8-1,6 / 2,5-3,5 / UEGO
Lambda emulation Possible for all managed types

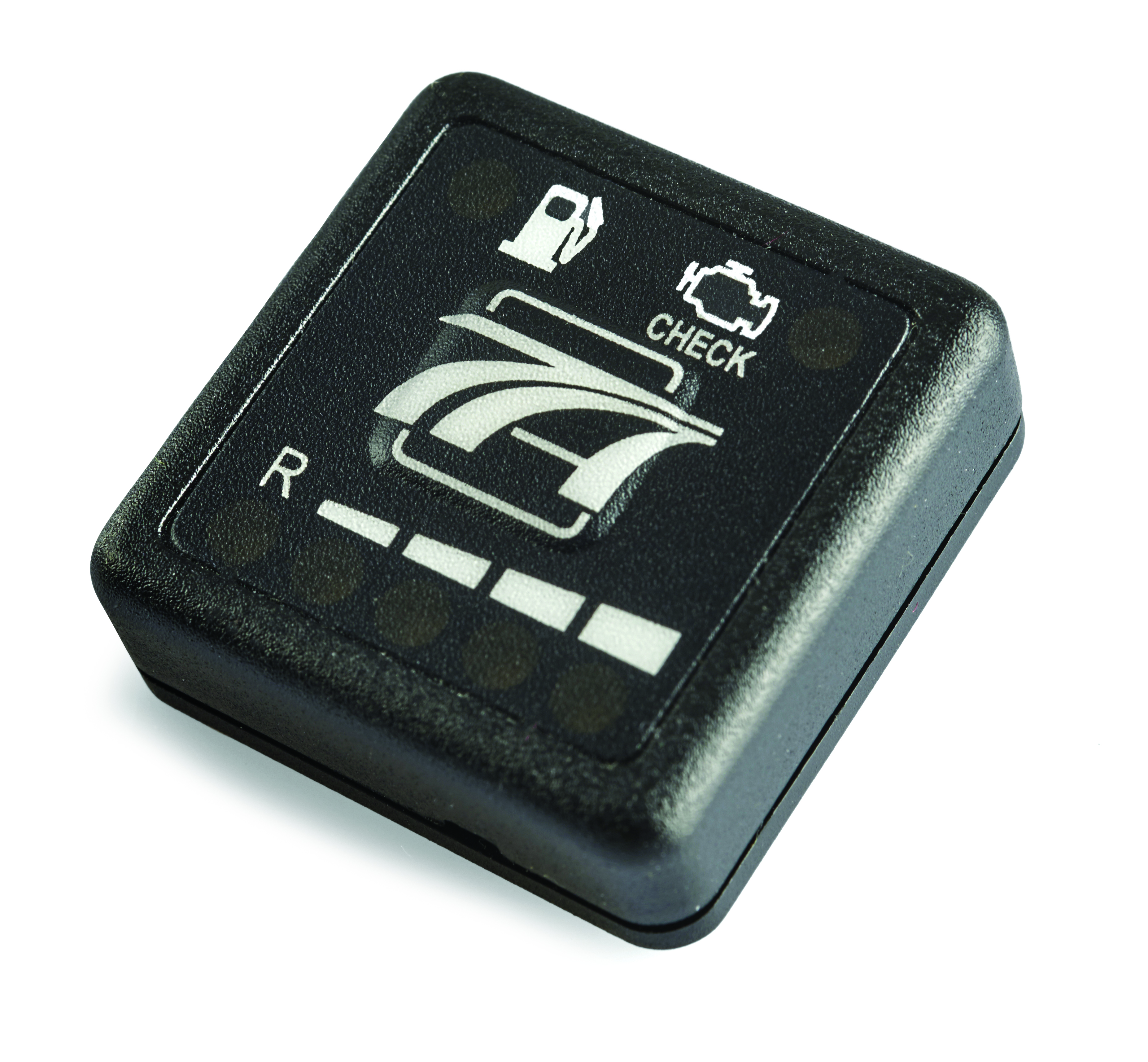

Change-over Switch Pushbutton, gas level shown, operating led, ready-to-change blinking, diagnostics, Buzzer
Interface 4 poles AMP on the loom for custom USB or Bluetooth interface
Standard OBD protocols supported None
