CNG cylinder automatic valve type HD

Description

CNG automatic cylinder valves VM05 HD have been developed in particular for heavy-duty applications, and are homologated in accordance with the European Regulations ECE R110 and R10 and in compliance with the ISO15500 standards.

Valve VM05 HD is provided with manual tap, excess flow valve and solenoid valve, and is equipped both with separeted safety devices (thermofuse T-PRD and burst disc). It can be produced with or without ventilation system.

VM05 HD is manufactured with bigger internal passages and can have bigger external connections, compared with VM05 Automatic, allowing a bigger gas flow.

  • Features & Options
TECHNICAL DATA

CNG CYLINDER VALVE VM05 HD
Material Hot forged brass CNC machined
Weight 1.10 kg
Type of product High pressure CNG cylinder valve
Max. working pressure 26.0 MPa
Test pressure 27.5 MPa with burst disc (33.0 without burst disc)
Hydraulic collapse pressure >100 MPa
Working temperature -40°C / +85 °C
T-PRD activation temperature +108 °C ± 6 °C
T-PRD Min. area of gas flow 28.3 mm²
T-PRD activation time (with directed fire ) 10 sec.
Burst disc Min. area of gas flow 33.2 mm²
Burst disc, Burst pressure (T 20°C) 34 MPa ± 10% *
Manual tap, min. area of gas flow 15.9 mm²
Manual tap, Tightening torque at 26 MPa 3 ± 0.5 Nm
Manual tap,Opening/closing angle 900° (±45°) - 270° upon request
Excess flow valve, ΔP for activation 0.65 MPa
Pipe connection M14x1 (upon request 1/8” NPT)
Cylinder thread DIN, BS, NGT, UNF
Solenoid valve, mi. area of gas flow 21.6 mm²
Coil voltage 12 V DC (upon request 24 V)
Coil power 15 W
Solenoid valve opening ΔP 26 Mpa @ 8V
Coil connection Minitimer (upon request amp superseal)
* upon request Burst pressure 41 or 30 MPa

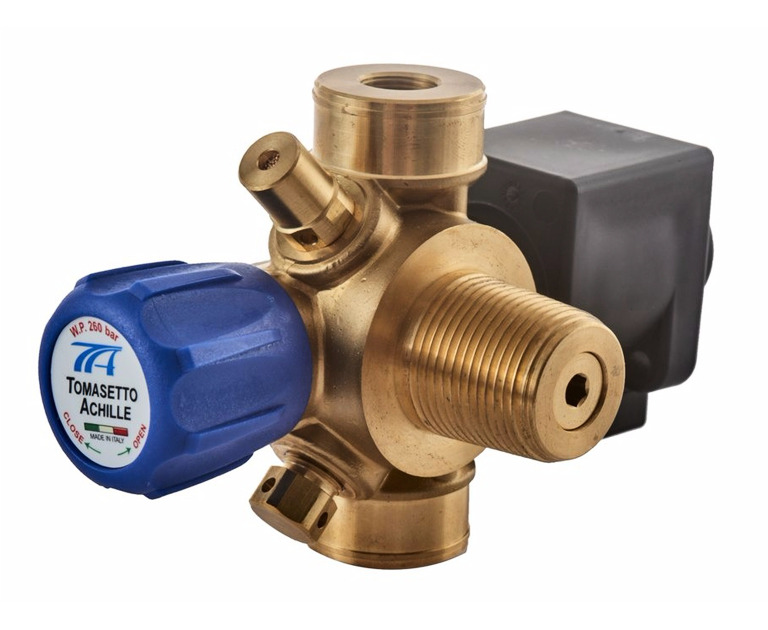

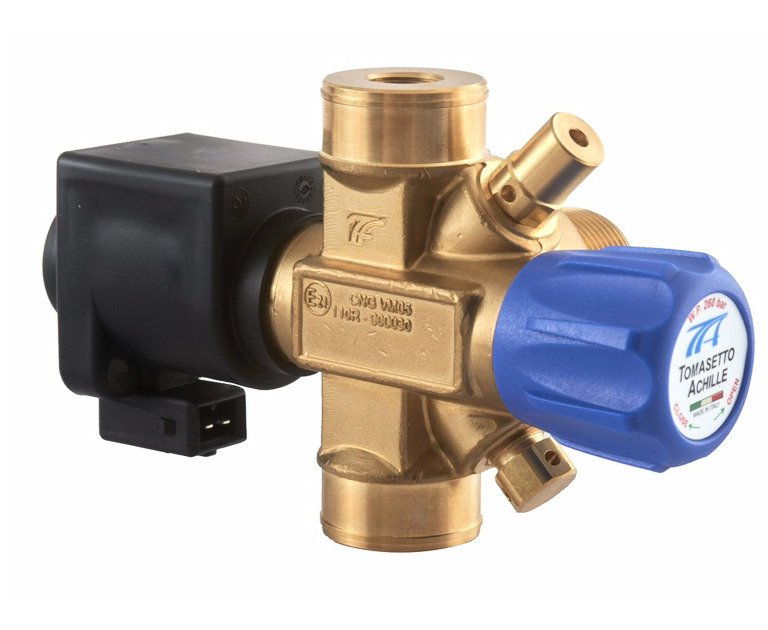

Gallery
