CNG filling valves VM04 Russia

CNG filling valves VM04 Russia

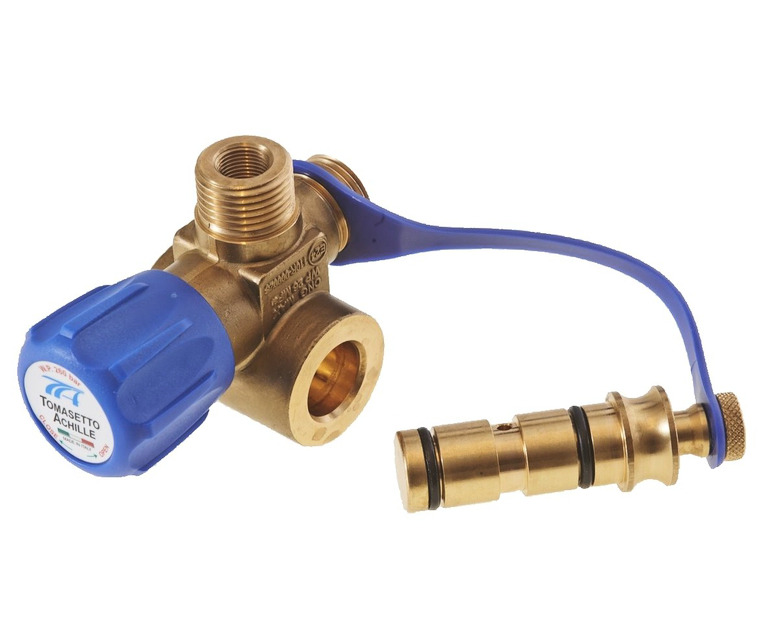

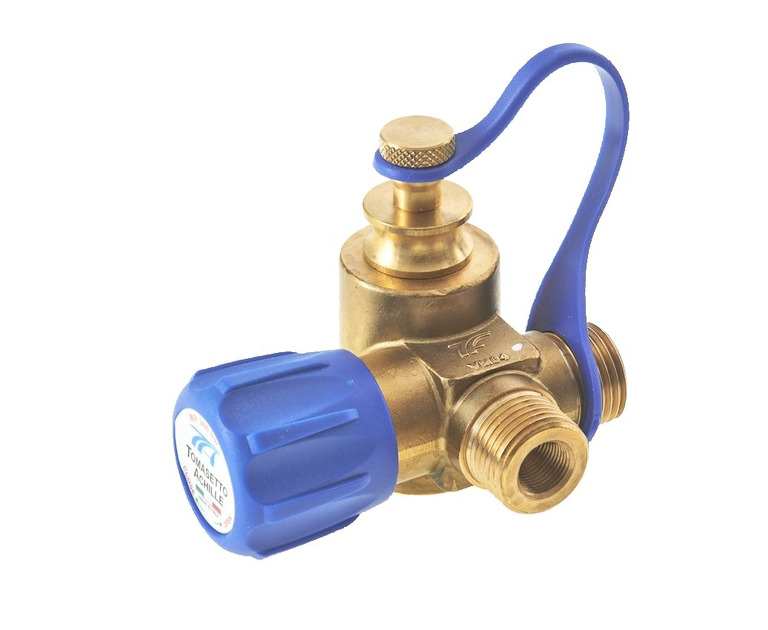

Manual Filling Valve Russian type

Description

Manual Filling Valve NGV1 type

CNG Manual Filling valves Russian type have been developed for the markets of Eastern Europe and Central Asia and are equipped with manual tap and easy discharge tap.

  • Features & Options
TECHNICAL DATA

CNG FILLING VALVE RUSSIAN TYPE
Material Hot forged brass CNC machined
Weight 0.60 kg
Type of product CNG manual filling valve
Max. working pressure 26.0 MPa
Working temperature -40°C / 120°C
Manual tap, min. area of gas flow 12.6 mm²
Manual tap, Tightening torque at 26 MPa 3 ± 0.5 Nm
Manual tap,Opening/closing angle 900° (±45°)
Non return valve no
Outlet pipe connection M12x1 (upon request M14x1, 1/4" NPT, 1/8" NPT)
External pipe connection 1/2” G
