CNG FILLING VALVES VM04 NGV1

CNG filling valves VM04 NGV1


CNG filling valves with NGV1 connector

Description

Manual Filling Valve NGV1 type

CNG Manual Filling valves NGV1 type are homologated in accordance with the European Regulation ECE R110.

They are available in two different models:

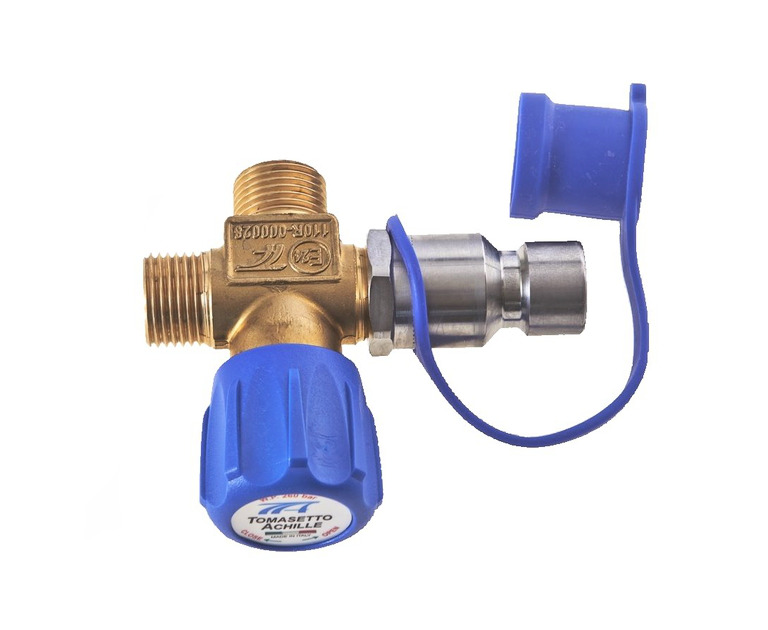

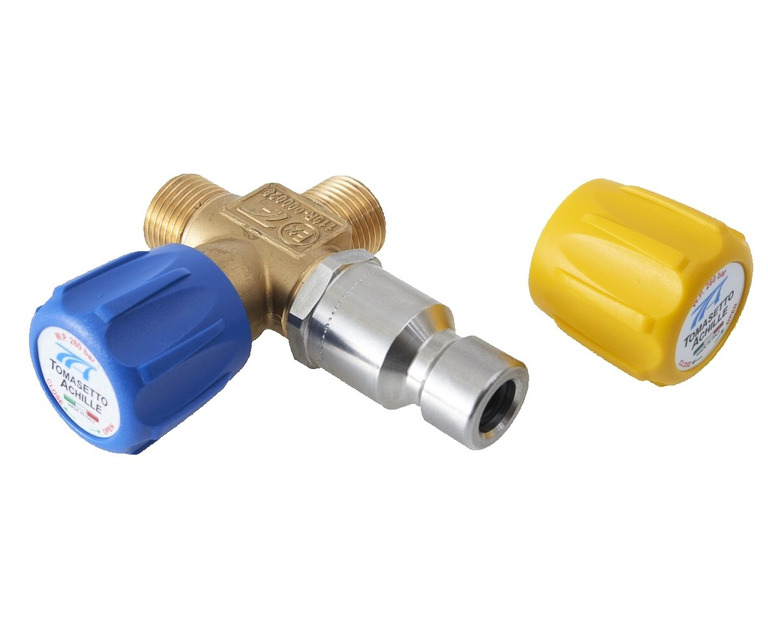

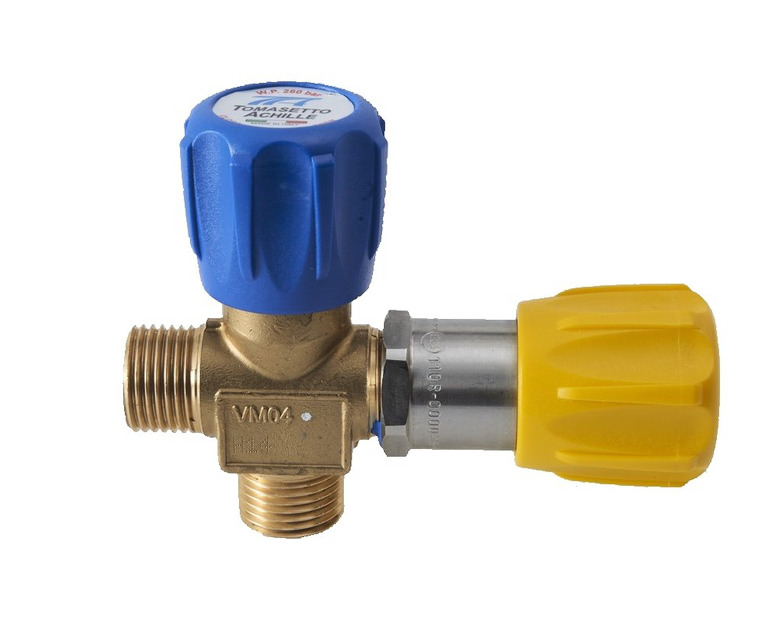

STANDARD type , with manual tap and non-return valve, available with NGV1 and NGV1 ITALIA connectors.

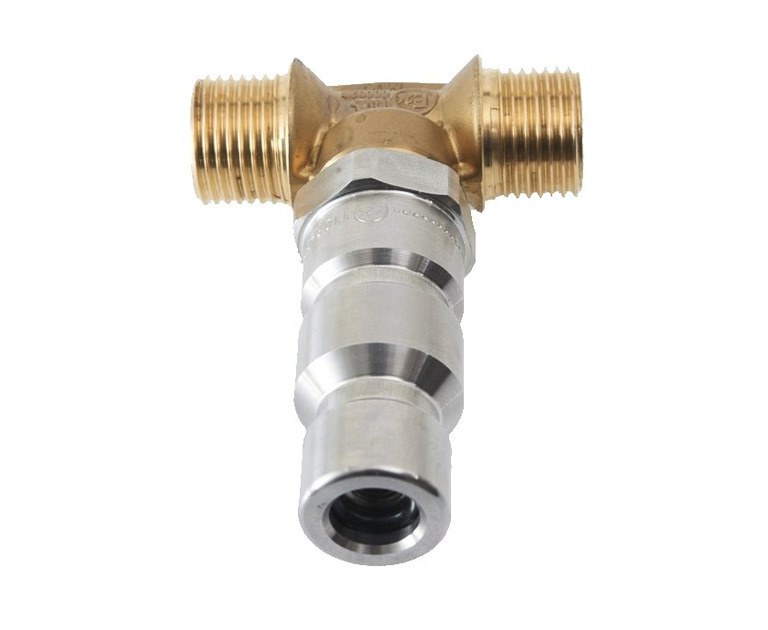

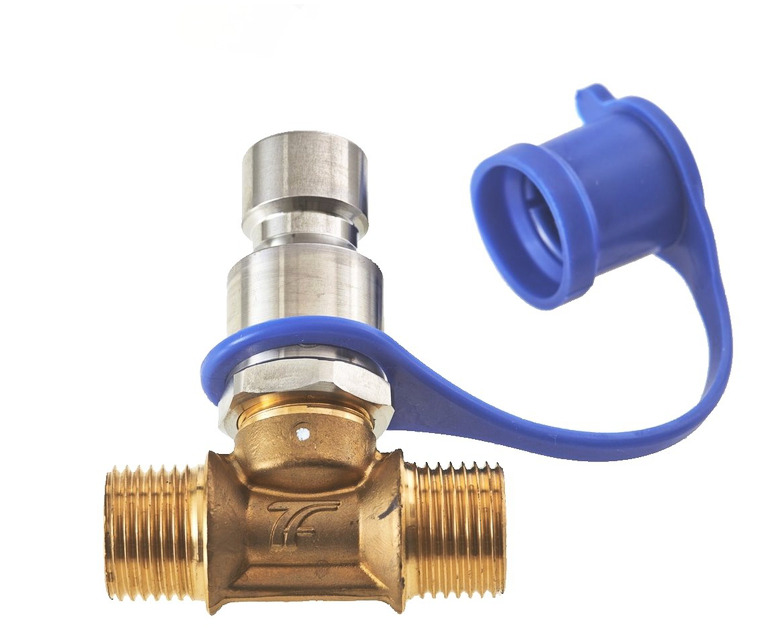

"T" type, without manual tap, with non-return valve, available with NGV1 and NGV1 ITALIA connectors

  • Features & Options
TECHNICAL DATA

CNG FILLING VALVE MANUAL NGV1 STANDARD MANUAL NGV1 "T" BODY
Material Hot forged brass CNC machined Hot forged brass CNC machined
Weight 0.4 kg 0.3 kg
Type of product CNG manual filling valve CNG manual filling valve
Max. working pressure 26.0 MPa 26.0 MPa
Working temperature -40 °C / 120 °C -40 °C / 120 °C
Manual tap, min. area of gas flow 12.6 mm² 12.6 mm²
Manual tap, Tightening torque at 26 MPa 3 ± 0.5 Nm -
Manual tap,Opening/closing angle 900° (±45°) -
Non return valve yes yes
Outlet pipe connection M12x1 (upon request M14x1, 1/4" NPT, 1/8" NPT) M12x1 (upon request M14x1, 1/4" NPT, 1/8" NPT)
External pipe connection 1/2 G 1/2 G
Types of connection NGV1, NGV1 ITALIA NGV1, NGV1 ITALIA
