Solenoid valves LPG cut-off valve

Solenoid valves LPG cut-off valve

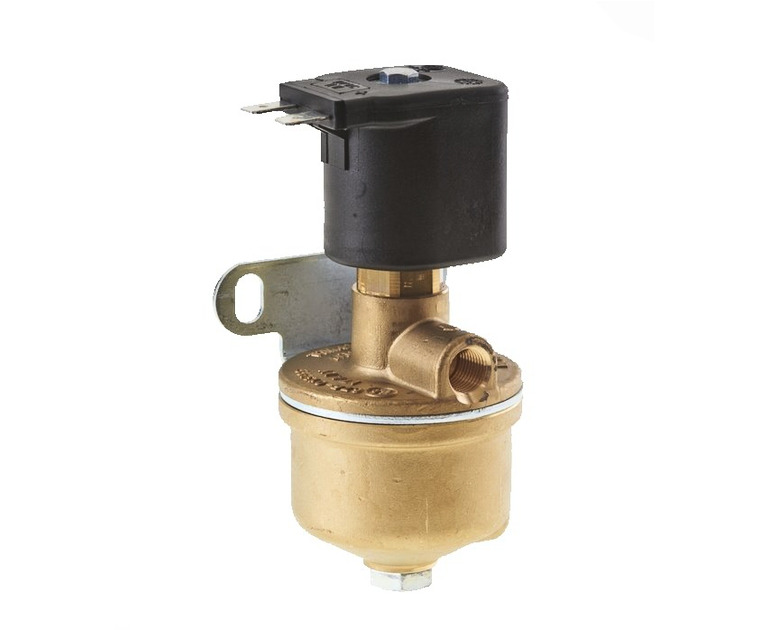

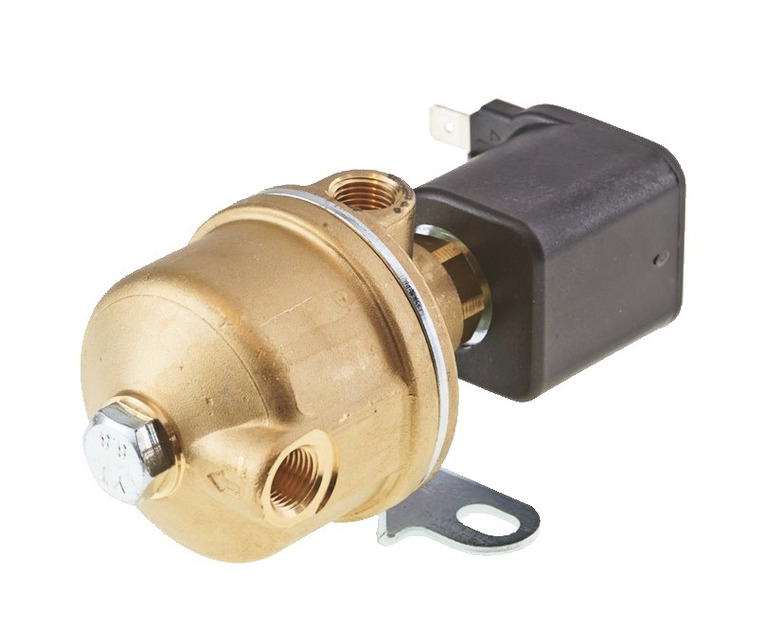

LPG cut-off valve mod.EVG-01

Description

The LPG solenoid valve mod. EVG-01 is a solenoid valve 12V for LPG systems, made with a brass body and provided with an high-efficiency internal filter; it is homologated 67R-01.

Inlet and outlet conections M10x1 for 6 mm pipes.

Gallery
  • Features & Options
TECHNICAL DATA

LPG CUT-OFF VALVE MOD. EVG-01
Material Hot forged brass
Weight 0.5 kg
Working temperature -20 °C / +120 °C
Coil power 11 W
Coil voltage 12 V DC
Coil connection Faston *
* AMP superseal upon request
